High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support

Certification : ISO 9001 Certified

Compatibility : Compatible with most drilling rigs

Wearresistance : High

Packaging Details : Wooden Boxes, Cardboard Boxes

Threadtype : R、T、S、SR、ST

Name : Button Bit

Application : Drilling

Weight : Varies by size

Brand Name : HLDRILL

Place of Origin : CHINA

MOQ : 10PCS

Price : Please contact us

Payment Terms : T/T

Supply Ability : 3000 PCS Per month

Delivery Time : 7-15 Days

Usageenvironment : Mining, Construction, Quarrying

Face : flat、drop center 、New drop center

Material : Tungsten Carbide

Diameter : 32mm

Contact Now

High-Hardness Alloy 32mm x 65mm Tapered Button Bit for Small-Scale Mine Slope Support

This Henglong 32mm x 65mm tapered button drill bit is engineered with high-quality, high-hardness tungsten carbide alloy specifically for the demanding requirements of small-scale mining and slope support drilling. The precisely machined button inserts and tapered shank design ensure perfect compatibility with most lightweight rock drills.

Product Specifications

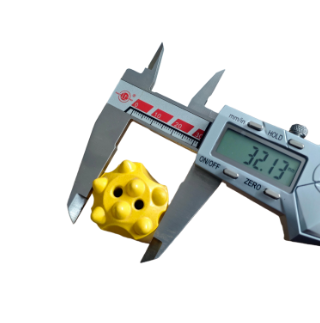

Diameter: 32mm

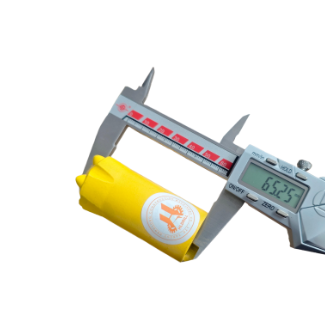

Body Length: 65mm

Tapered Degree: 11°

Carbide Size: 2*7mm, 5*7mm

Carbide Brand/Grade: YK05

Steel Grade: 45CrNiMoVA

Hardness: HRC45-48

Weight: 0.2kgs

Key Features

Excellent Wear Resistance: The high-hardness alloy matrix resists abrasion from rough rock formations and reduces tool replacement downtime in slope reinforcement projects.

Stable Drilling Accuracy: The 32mm drilling diameter and 65mm working length ensure consistent hole diameter required for anchor bolt installation, which is crucial for maintaining the structural integrity of small mine slopes.

Impact Resistance: The heat-treated drill bit body and reinforced button welding structure can withstand intermittent impact loads, preventing premature chipping or breakage in mixed rock and soil layers commonly found in mine slopes.

Product Images

Technical Support Available : If you have any requirements, please contact our technical team immediately, and we will provide you with the best solution.
